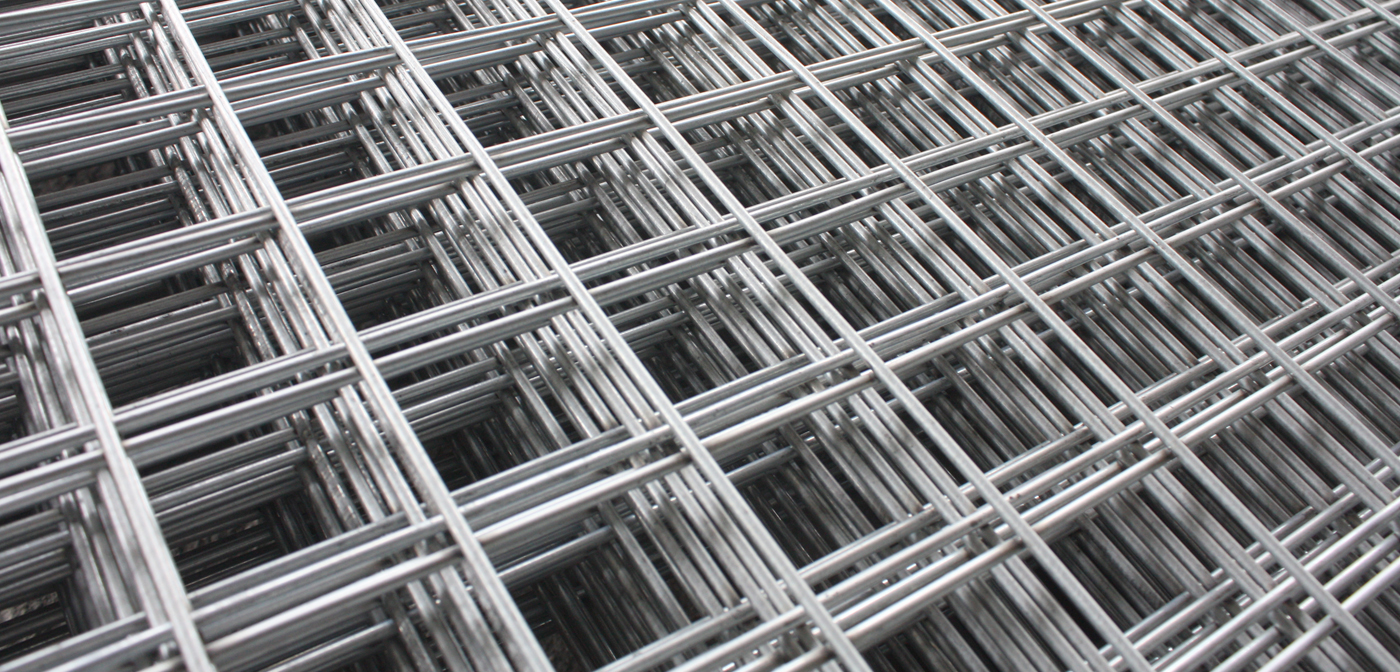

BRC Wire Mesh (Panel)
BRC Mesh in sheet form is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
The BRC galvanized mesh mainly used for applications such as gratings for walkways and platforms, gratings for drainage covers, ventilation gratings, safety barriers, containers and so on.
While BRC steel mesh can be used in concrete reinforcing. Concrete is one of the more common materials used in the construction of commercial buildings. Its properties make concrete an excellent choice for steel structures, cladding systems and floor slabs on grade.
| Sheet Form BRC Mesh 6’ X 10’ | ||
| Specification List | Wire Thickness (mm) |
|
| Code Name | Inch | |
| 2208 Galvanized | 2″ X 2″ | |
| 2210 Galvanized | 2″ X 2″ | 2.7mm X 2.7mm |
| 2211 Galvanized | 2″ X 2″ | 2.5mm X 2.5mm |
| 2212 Galvanized | 2″ X 2″ | 2.1mm X 2.1mm |
| 2215 Galvanized | 2″ X 2″ | 1.6mm X 1.6mm |
| 1210 Galvanized | 1″ X 2″ | 2.7mm X 2.7mm |
| 1213 Galvanized | 1″ X 2″ | 2.0mm X 2.0mm |
| 2210 Galvanized | 2″ X 2″ | 2.7mm X 2.7mm |
| 2392 Galvanized | 2″ X 2″ | 2.5mm X 2.0mm |
| Technical Note: 1.Standard sheet – Width: 6 feet, Length: 10 feet |
||
