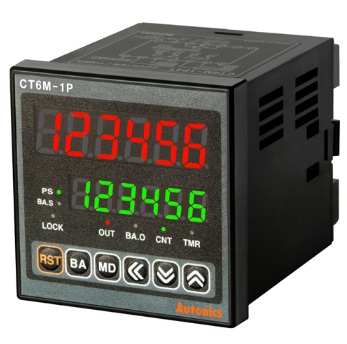

CT Series Programmable Counter / Timer

Adopts RS 485 communication function so that each parameter setting and monitoring can be available from PC. In addition, it allows up to 6 digit prescale setting possible to provide user convenience. Increased contact capacity of load to 5A.

Features

• Prescale value setting range – 6-digit model: 0.00001 to 99999.9 / 4-digit model: 0.001 to 999.9
• Communication function supported (communication model): RS485 (Modbus RTU)
• One-shot output time setting range – 0.01 sec. to 99.99 sec. by setting per 10ms.
• [Counter]
  – 9 input modes/11 output modes.
  – BATCH counter.
  – Count Start Point (counting initial value) setting function.
• [Timer]
  – 11 output modes.
  – Various time setting range– 6-digit model: 0.001 sec. to 99999.9 hour / 4-digit model: 0.001 sec. to 9999 hour.
  – ‘0’ time setting function.
  – Selectable timer memory retention function for indicator model.
