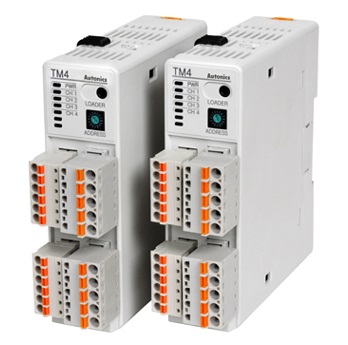

TM Series PID Temperature Controller (Modular Multi-Channel)

The TM series modular type PID temperature controllers are capable of controlling up to 4 channels (TM4) or 2 channels (TM2) simultaneously. Using the expansion connectors, the TM series can be easily expanded to control up to 124/62 channels (TM4/TM2) without additional wiring for power or communication. The temperature controllers feature high-speed sampling cycles (TM4: 100 ms / TM2: 50 ms), RS485 communication support, and simultaneous heating and cooling control. Parameter configuration and status monitoring via PC is easy with the included DAQMaster software. (Able to download free from Autonics Webside)

Features

Multi-channel (4-channel: TM4 / 2-channel: TM2) input and output control.
High-speed sampling cycle (4-channel: 100 ms / 2-channel: 50 ms)
Module connection and expansion with expansion connectors.
– Communication between modules.
– No additional power supply wiring.
– Expandable up to 31 units (124-channels / 62-channels)
Simultaneous heating and cooling control function.
Isolated input channels (dielectric strength: 1000 VAC)
Switch between current output and SSR drive output (TM2-◻2C◻ models)
SSR drive output (SSRP function) control options: ON/OFF control, cycle control, phase control.
Parameter configuration via PC (USB and RS485 communication)
– DAQMaster software included (comprehensive device management software)
– Communication converter sold separately: SCM-US (USB to serial converter), SCM-38I (RS-232C to RS485 converter), SCM-US48I (USB to RS485 converter)
Easy wiring and maintenance with various connectors: sensor input connector, control output connector, power/communication connector
Heater disconnect alarm function (CT input)
– Current transformer (CT) sold separately: CSTC-E80LN, CSTC-E200LN
Various input types and temperature ranges.
